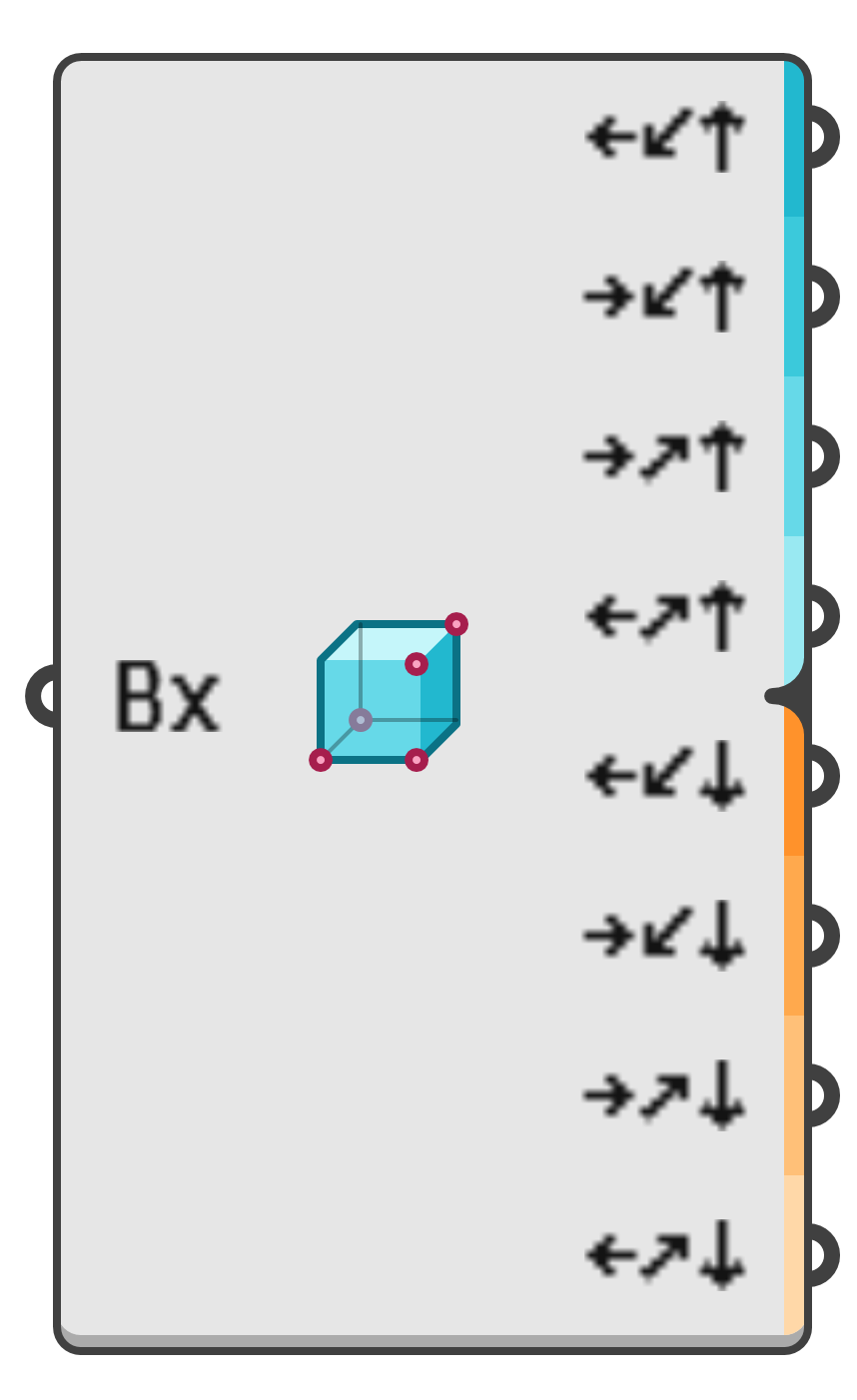

Box Corners
00000000-8209-4842-90cc-64cb8865f014
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the eight corners of a box.

Input parameters:

  1. Bx → Box for corner point extraction.

Output parameters:

  1. ←↙↑ → Point in the upper left front corner. (x:min, y:min, z:max)
  2. →↙↑ → Point in the upper right front corner. (x:max, y:min, z:max)
  3. →↗↑ → Point in the upper right back corner. (x:max, y:max, z:max)
  4. ←↗↑ → Point in the upper left back corner. (x:min, y:max, z:max)
  5. ←↙↓ → Point in the lower left front corner. (x:min, y:min, z:min)
  6. →↙↓ → Point in the lower right front corner. (x:max, y:min, z:min)
  7. →↗↓ → Point in the lower right back corner. (x:max, y:max, z:min)
  8. ←↗↓ → Point in the lower left back corner. (x:min, y:max, z:min)
