Orthogonality Display
00000000-8047-40ee-bea2-0c651a339a06

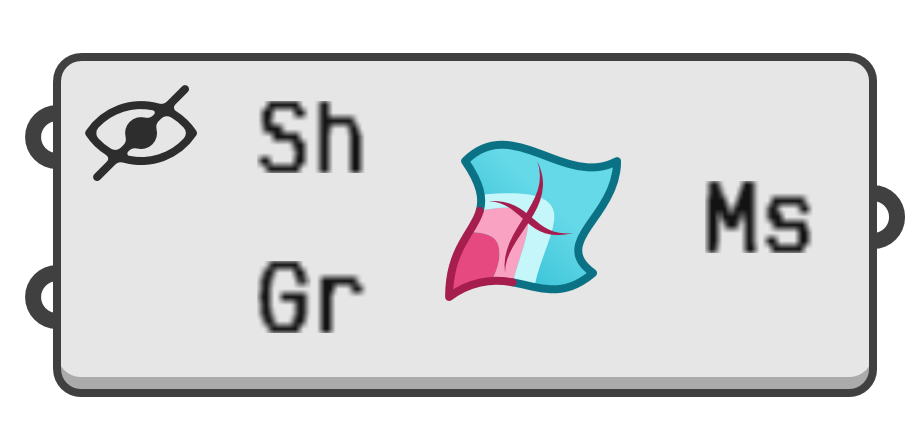

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Visualise the orthogonalities of the U and V directions across a surface.

Input parameters:

  1. Sh → Surface to analyse.
  2. Gr → Visualisation gradient parameterised at angular degrees.

Output parameters:

  1. Ms → Mesh with analysis colours.
