Polyline From Silhouette
00000000-7ae2-474f-b271-10748d6d1ac6

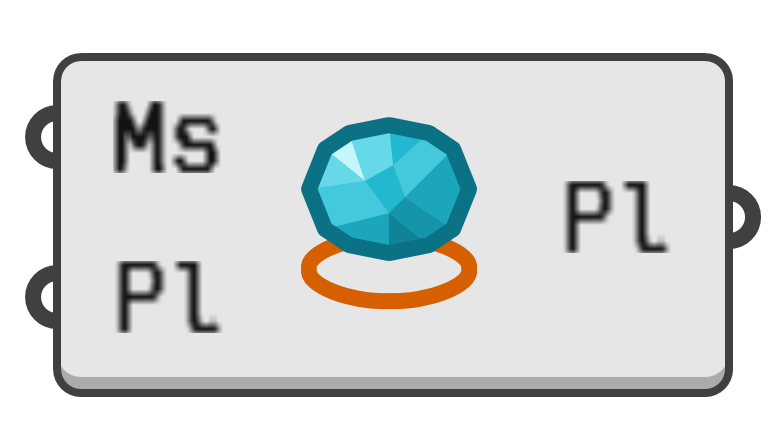

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create the polylines which describe the silhouette of a mesh when its projected onto a plane.

Input parameters:

  1. Ms → Mesh for silhouette.
  2. Pl → Silhouette plane.

Output parameters:

  1. Pl → Polyline which describes the mesh silhouette.
