Wring Deform
00000000-79d6-403d-ae58-5dfd4296e1e1

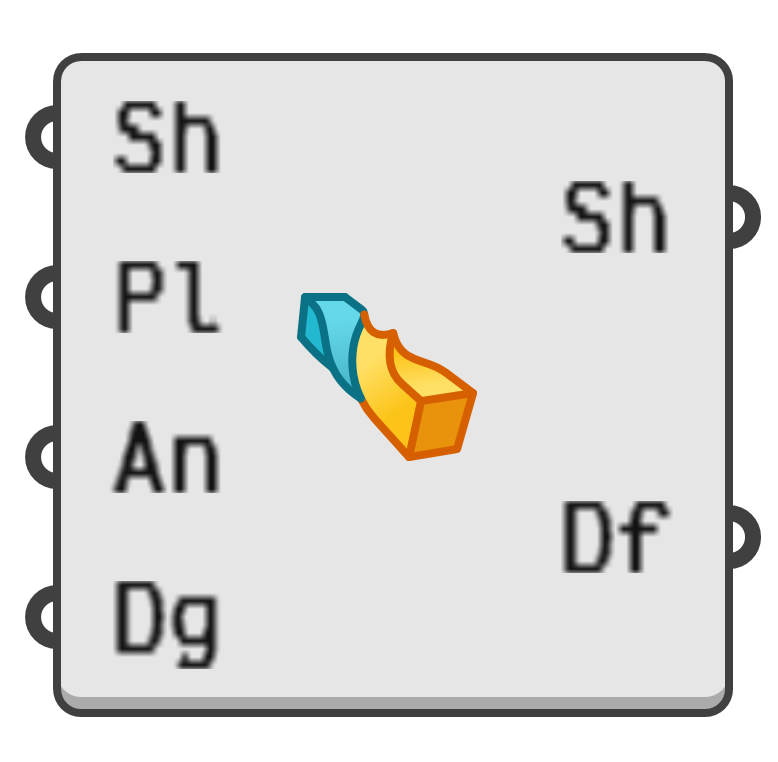

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a wringing deformation. Wringing is similar to twisting, but with a variable angle progression. If an input shape is provided, it will be deformed accordingly.

Input parameters:

  1. Sh → Optional shape to wring.
  2. Pl → Orientation plane. The wringing axis is coincident with the plane z-axis.
  3. An → Function describing the wringing angle based on distance to plane.
  4. Dg → If true, the function values represent angles measured in degrees instead of radians.

Output parameters:

  1. Sh → Shape with applied deformation.
  2. Df → Wringing deformation.
