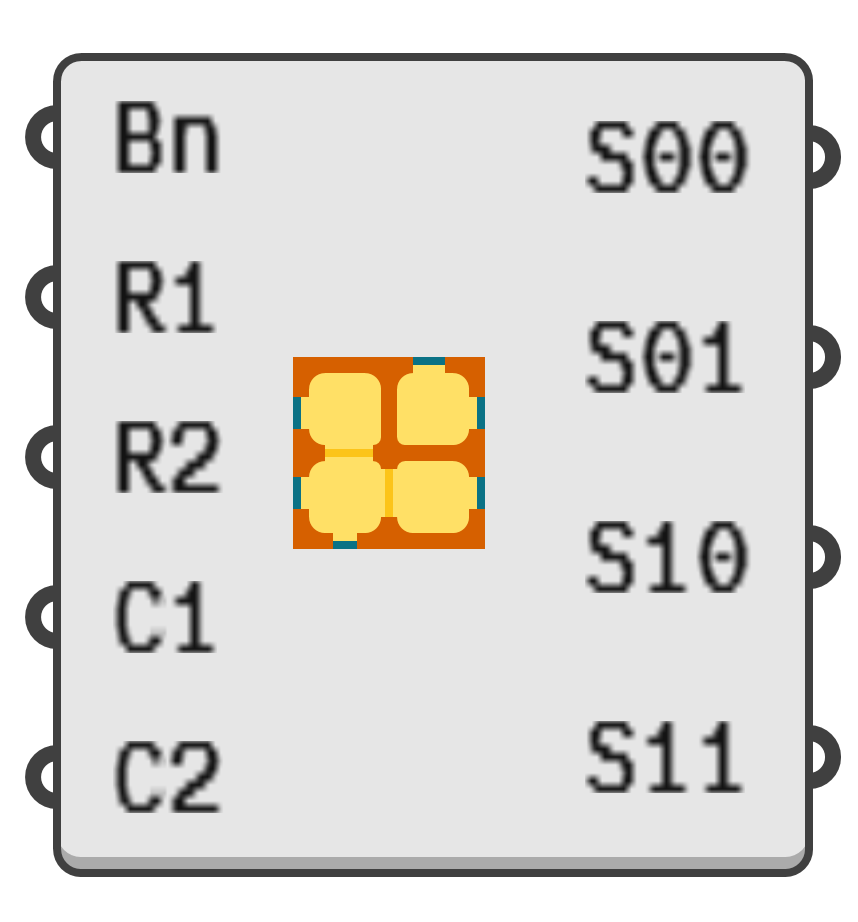

Create an architectural four-square-grid plan.

Input parameters:

  1. Bn → Boundary rectangle within which the 4-square grid will be laid out.
  2. R1 → Relative weighting of the first row.
  3. R2 → Relative weighting of the second row.
  4. C1 → Relative weighting of the first column.
  5. C2 → Relative weighting of the second column.

Output parameters:

  1. S00 → The cell in the bottom left of the grid.
  2. S01 → The cell in the bottom right of the grid.
  3. S10 → The cell in the top left of the grid.
  4. S11 → The cell in the top right of the grid.
