Mesh Closedness
00000000-735f-4cf9-89ca-d21ffc80f3a0

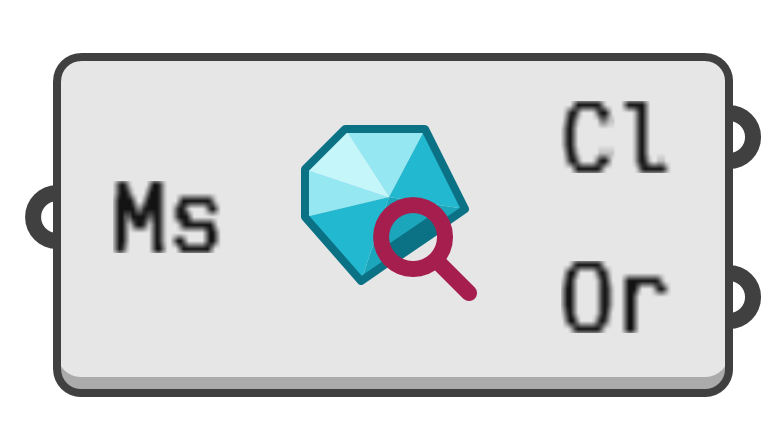

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Determine whether a mesh is closed and what its orientation is.

Input parameters:

  1. Ms → Mesh to evaluate.

Output parameters:

  1. Cl → True if the mesh is closed. All edges in a closed mesh have exactly two facets on each side.
  2. Or → True if the mesh is oriented outwards.
