Plane Coordinates
00000000-71c4-4fcb-bae8-e9b0213988f3

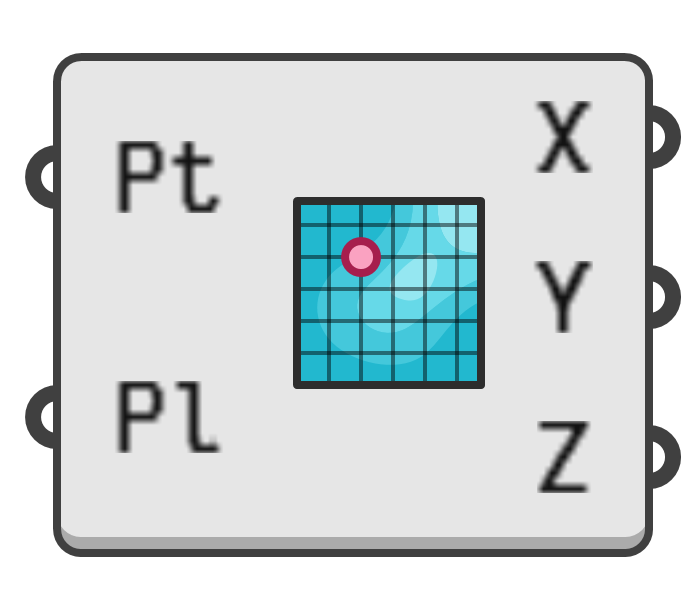

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute the cartesian plane coordinates of a point in world space.

Input parameters:

  1. Pt → Point in world XYZ space.
  2. Pl → Plane describing the local cartesian coordinate system.

Output parameters:

  1. X → X coordinate of the point in the plane coordinate system.
  2. Y → Y coordinate of the point in the plane coordinate system.
  3. Z → Z coordinate of the point in the plane coordinate system.
