Array Polar
00000000-71a9-4f4f-bc2d-1c99ff696e29

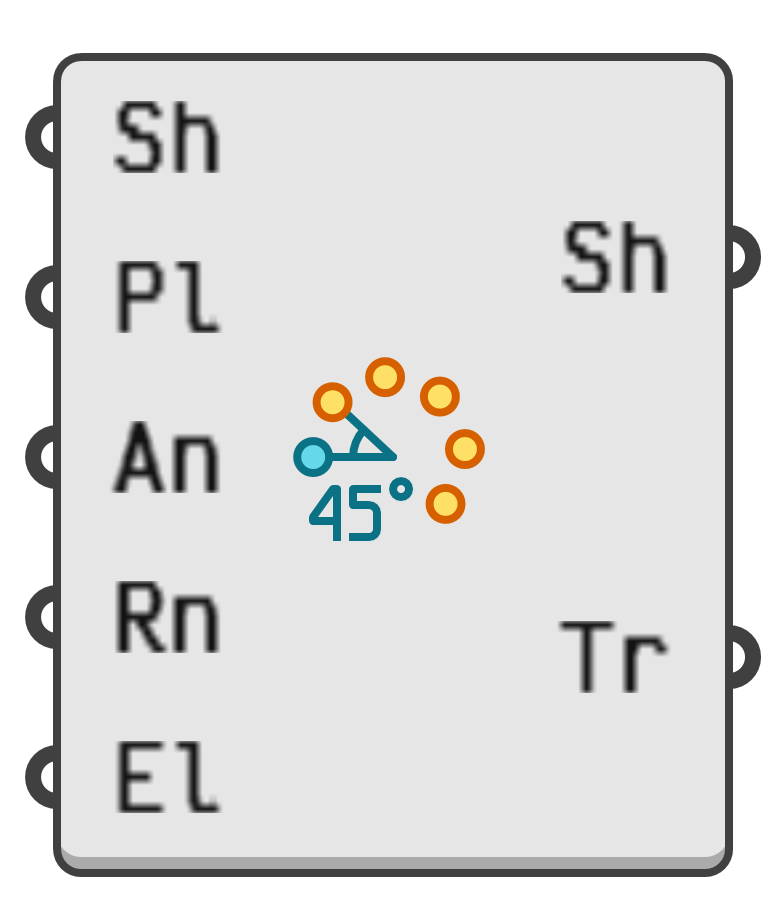

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a polar array of rotations. If an input shape is provided, it will be transformed accordingly.

Input parameters:

  1. Sh → Optional shape to array.
  2. Pl → Centre and orientation of polar array.
  3. An → Angle between adjacent elements.
  4. Rn → Number of array elements.
  5. El → Optional function giving the elevation of each array element. The function must be scaled to element index, rather than element angle.

Output parameters:

  1. Sh → Arrayed shapes.
  2. Tr → List of transformations applied to each element in the array.
