Rev Surface
00000000-6863-4795-87a9-51c6adbc9ec0

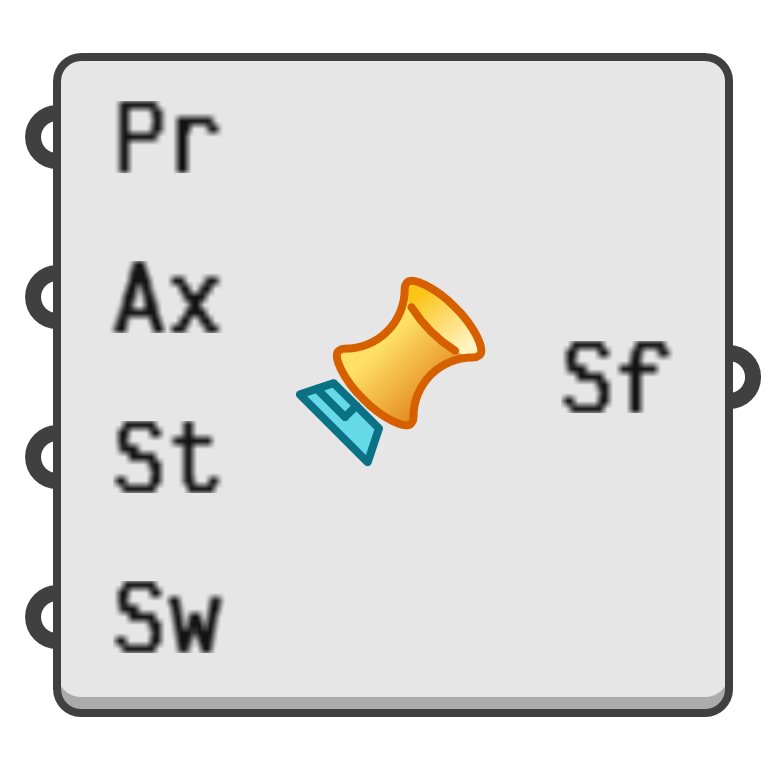

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a surface of revolution by sweeping a curve around a plane normal.

Input parameters:

  1. Pr → Profile curve.
  2. Ax → Axial plane of revolution.
  3. St → Start angle of revolution within the axial plane.
  4. Sw → Sweep angle of revolution within the axial plane.

Output parameters:

  1. Sf → Surface of revolution constructed out of the profile curve and the angles.
