Rectangle From Offsets
00000000-6400-428b-a7b4-4da9ba8f1340

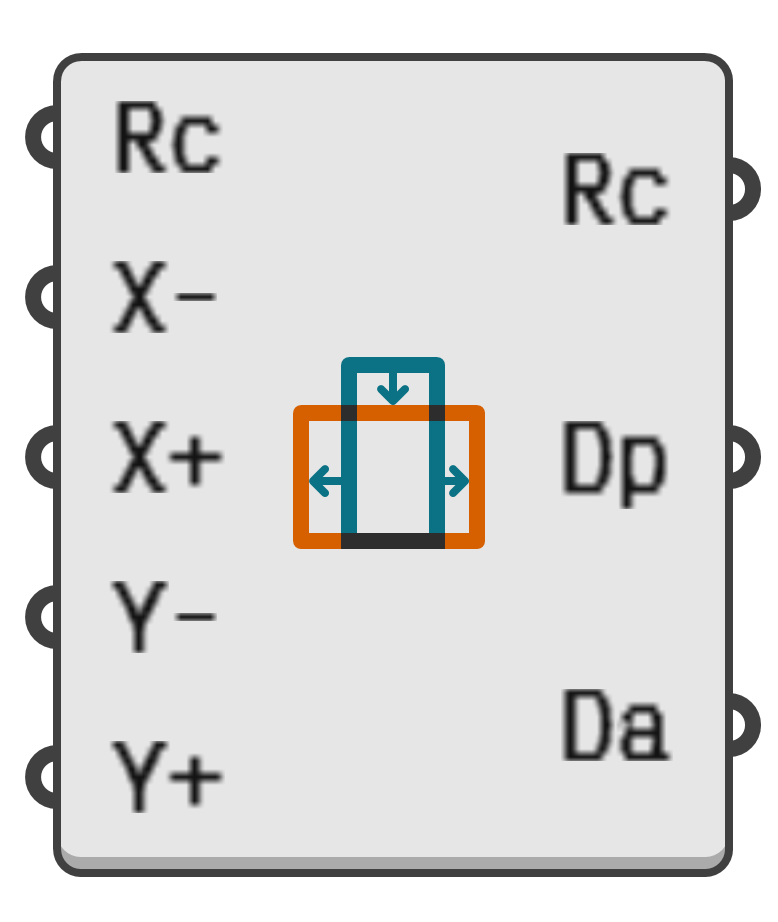

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a rectangle by offsetting the edges of another rectangle.

Input parameters:

  1. Rc → Base rectangle to offset.
  2. X- → Offset for the lower X edge.
  3. X+ → Optional offset for the upper X edge. If omitted, the x-min value is used.
  4. Y- → Optional offset for the lower Y edge. If omitted, the x-min value is used.
  5. Y+ → Optional offset for the upper Y edge. If omitted, the y-min value is used.

Output parameters:

  1. Rc → Rectangle with offset edges.
  2. Dp → Difference in perimeter due to offsets.
  3. Da → Difference in area due to offsets.
