Triangle Mapping
00000000-5e7b-4fe0-b4b2-32740b4b5d2d

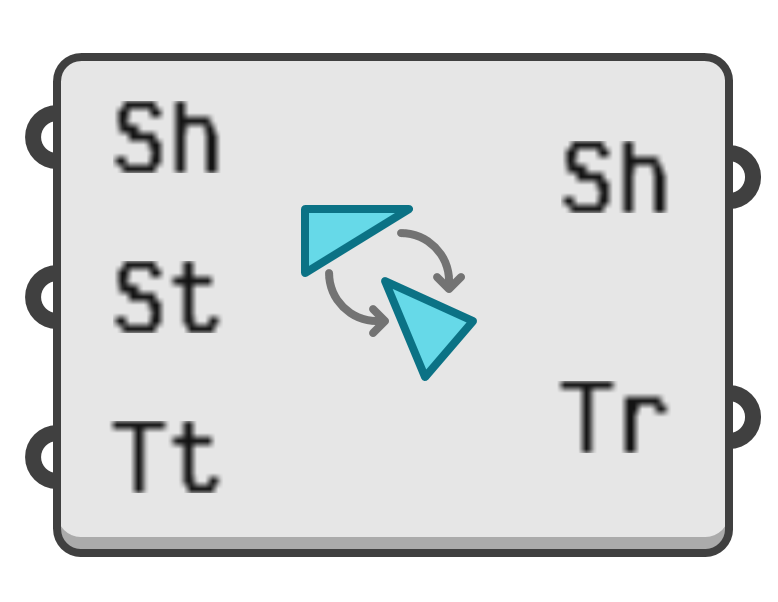

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Transform a shape using source and target reference triangles. The specifics of the transformation are encoded by the differences between the triangles.

Input parameters:

  1. Sh → Optional shape to transform.
  2. St → Triangle representing the initial state.
  3. Tt → Triangle representing the final state.

Output parameters:

  1. Sh → Transformed shape.
  2. Tr → Transformation consisting of the translation, dilation, rotation and shearing required to go from the source to the target triangle.
