Box From Corner
00000000-5752-461e-9571-b7a0d119d7dd

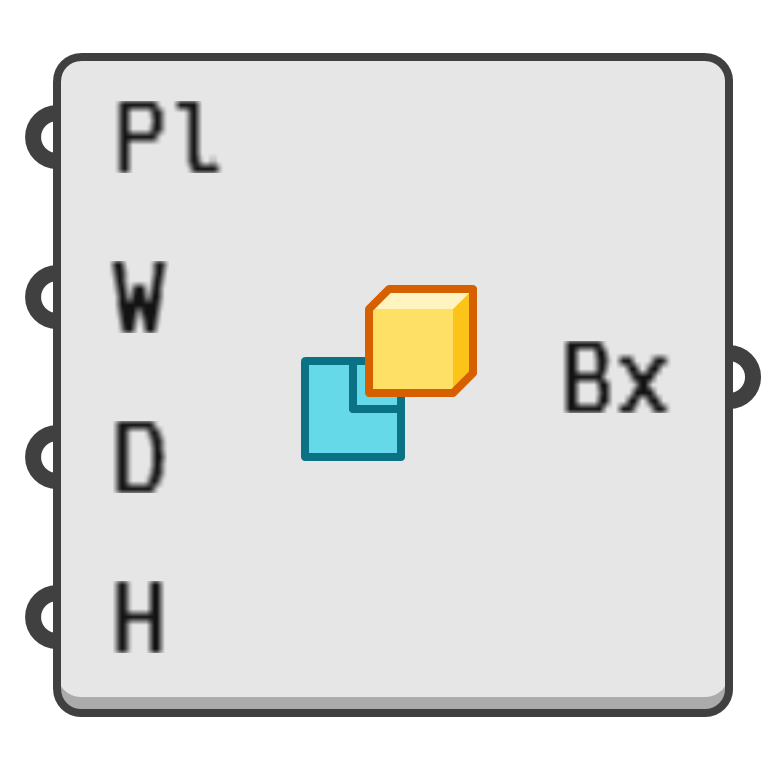

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a box from a corner point and width, depth and height values.

Input parameters:

  1. Pl → Corner point and orientation of box.
  2. W → Signed width of box along corner plane x-axis.
  3. D → Signed depth of box along corner plane y-axis.
  4. H → Signed height of box along corner plane z-axis.

Output parameters:

  1. Bx → Box based on corner and dimensions.
