Dot From Meta
00000000-4890-4be7-98c9-f16375dc41be

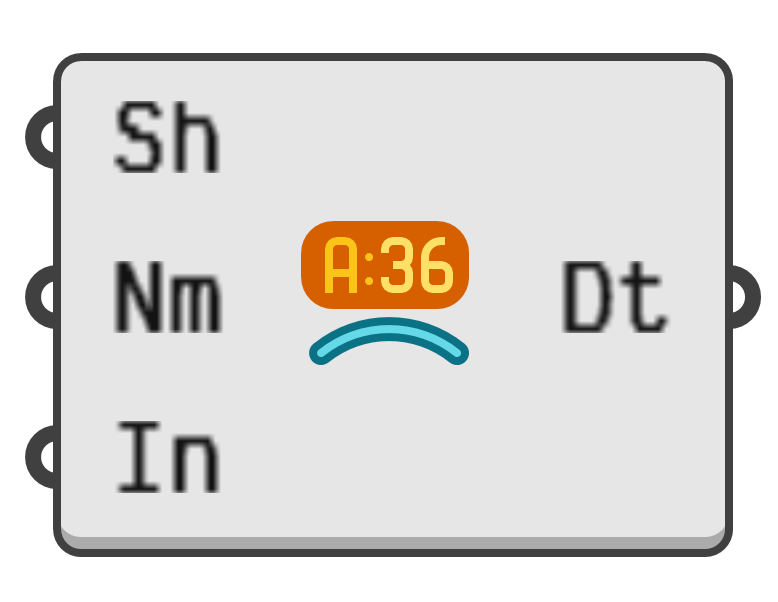

object preview Shape inputitem · requiredShape with metadata attached.Names inputmeta name · list · requiredNames of meta values to display.Include Name inputboolean · item · requiredSpecifies whether to include the meta name in the text dot.Dot outputtextdot · itemText dot showing meta data.

⚠️ This content is auto-generated.

Create a text dot out of given shape metadata values.

Input parameters:

  1. Sh → Shape with metadata attached.
  2. Nm → Names of meta values to display.
  3. In → Specifies whether to include the meta name in the text dot.
    •  True → Include
    • False → Exclude

Output parameters:

  1. Dt → Text dot showing meta data.
