Mesh From Surface
00000000-37ad-4bf7-9d44-d55f75962b22

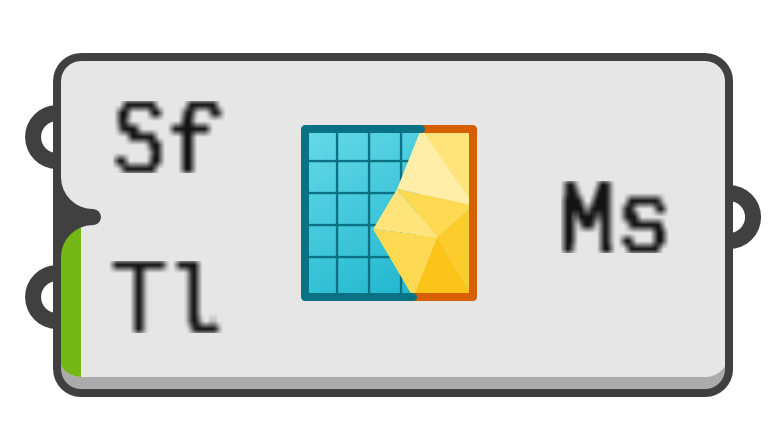

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a discrete mesh approximation of a surface.

Input parameters:

  1. Sf → Surface to mesh.
  2. Tl → Optional absolute tolerance to use during approximation.
  3. Pl → If true, nice planar surfaces will result in the simplest possible meshes.
  4. Jg → If true, meshes belonging to different surface faces will not be stitched together along edges.
  5. Pr → If true, the mesh vertices will use high precision coordinates.
  6. Rp → If true, attempts will be made to close the mesh if it isn't yet but should be.
  7. E- → Optional minimum allowed edge length. This places a lower limit on the subdivision density.
  8. E+ → Optional maximum allowed edge length. This places limits on the allowed size of long mesh edges.
  9. Rf → If true, the initial sampling grid can be refined to better fit local conditions.
  10. G- → Optional minimum number of quads in the initial sampling grid.
  11. G+ → Optional maximum number of quads in the initial sampling grid.
  12. As → Optional limits on the aspect ratio of quads in the initial sampling grid.
  13. Ds → Optional density for subdivision surfaces.

Output parameters:

  1. Ms → Mesh approximation of the surface.
