Mirror In Surface
00000000-34c0-41ad-88b1-fa9d2348b1fc

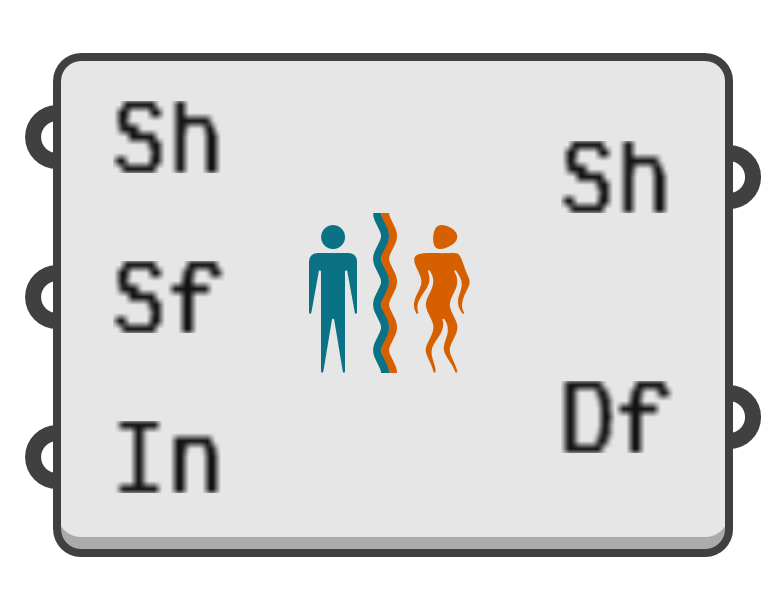

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a surface mirror deformation. If an input shape is provided, it will be deformed accordingly.

Input parameters:

  1. Sh → Optional shape to mirror in the surface.
  2. Sf → Mirroring surface.
  3. In → If true, the reflection occurs in the tangent plane at the closest point on the surface.

Output parameters:

  1. Sh → Shape with applied deformation.
  2. Df → Mirror deformation.
