Distance Field
00000000-3337-4b65-95e7-160bcc80bdf8

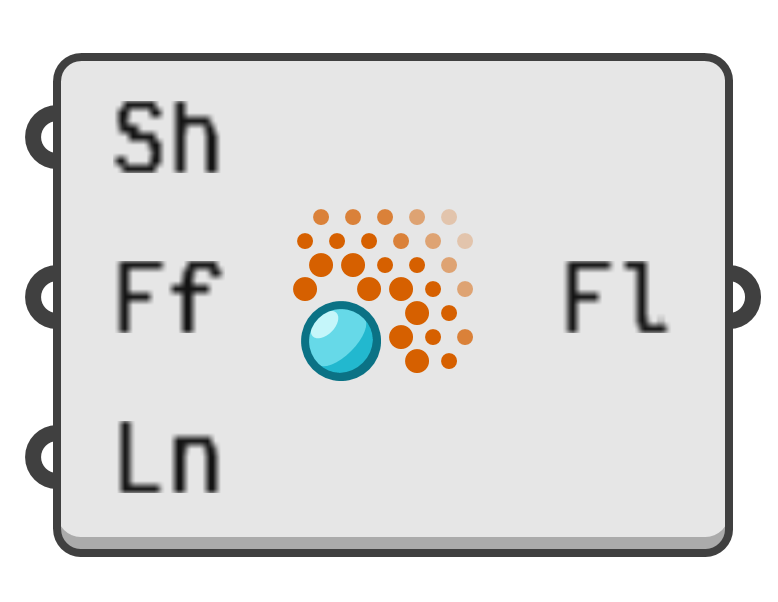

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a field encoding the distance from any point in space to one or more shapes.

Input parameters:

  1. Sh → Collection of shapes. Allowed types are limited to points, planes, curves, and surfaces.
  2. Ff → Field magnitude as a function of distance.
  3. Ln → If true, the field magnitude is affected by the nearest shape only.
    •  True → Nearest
    • False → All

Output parameters:

  1. Fl → Field representing distances to shapes.
