Area Centroid
00000000-32cf-47e5-881e-01eb9251b548

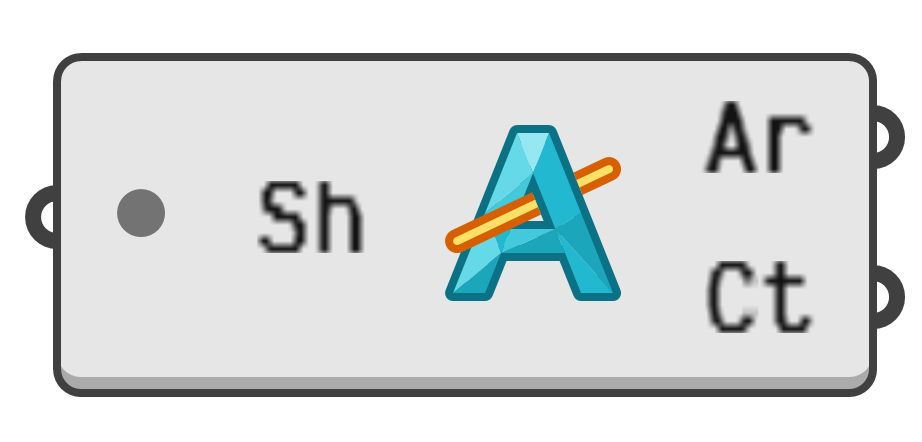

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Measure the area properties of an object, or a collection of objects.

Input parameters:

  1. Sh → Shapes for area measurement.

Output parameters:

  1. Ar → Area of shapes.
  2. Ct → Area centroid point of shapes.
  3. Ax → Principal axes of inertia (max=pink, mid=lime, min=blue).
  4. Mo → Principal moments of inertia.
