Pull Surface
00000000-32a5-407f-a0ae-fb79c1b87002

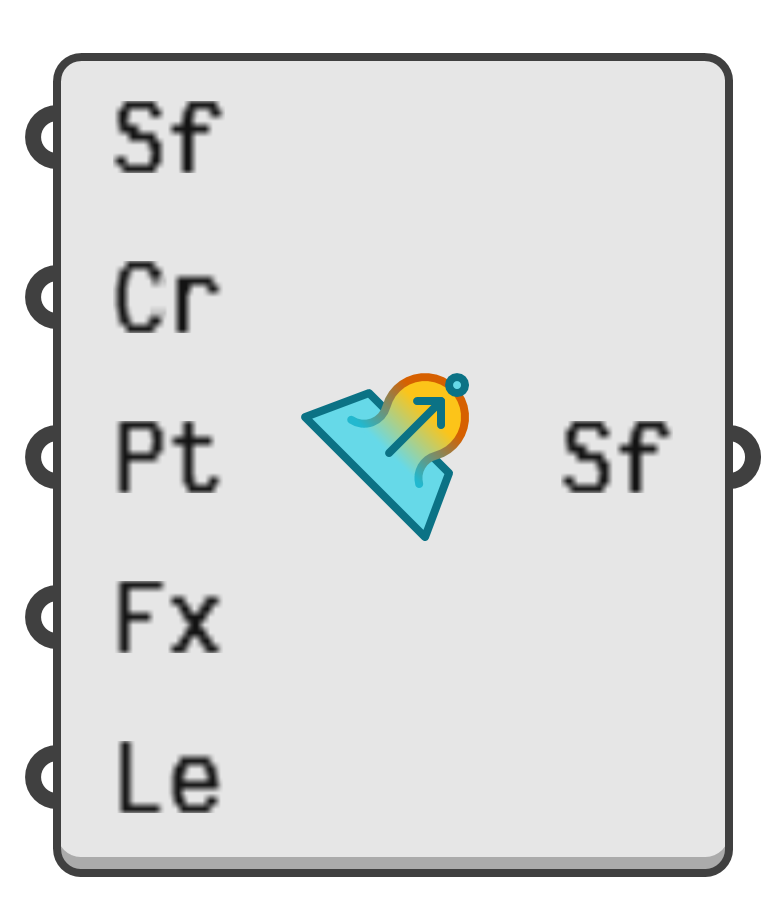

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Pull a surface towards a collection of curves and points.

Input parameters:

  1. Sf → Surface to tweak.
  2. Cr → Optional curves to pull towards.
  3. Pt → Optional points to pull towards.
  4. Fx → Flexibility of the surface in areas with few or distant constraints. Flexibility is defined in the range zero (most stiff) to ten (most flexible).
  5. Le → Locked edge state. If true, the surface edges will remain in place.

Output parameters:

  1. Sf → Surface pulled towards curves and points.
