ComponentCurve
Line Cue Points
00000000-3276-4d7b-9805-72b39cb24779

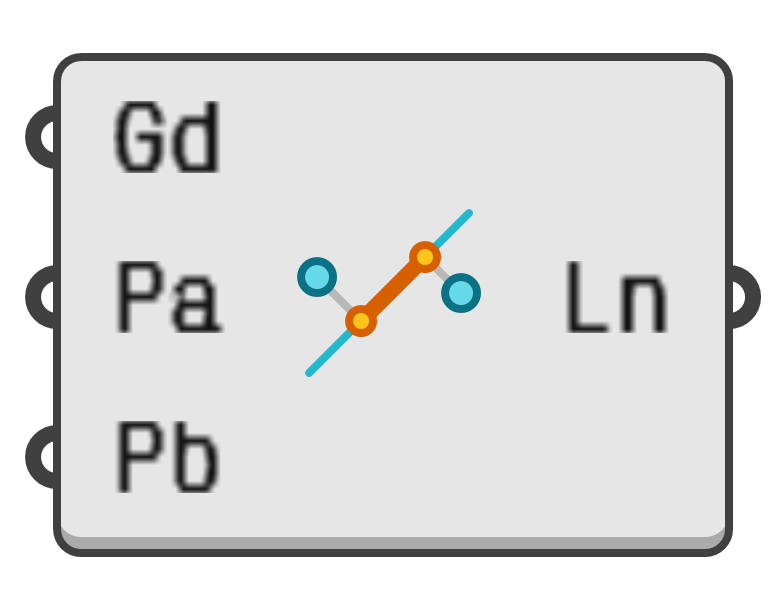

object preview

Create a finite line segment between the projections of two points onto a pre-existing infinite line. This is analogous to the FourPoint option in the Rhinoceros _Line command.

If the projected points are coincident, a zero-length line segment will be created, which may be invalid in certain contexts since it lacks a tangent direction.

1
2
3
4
4
5

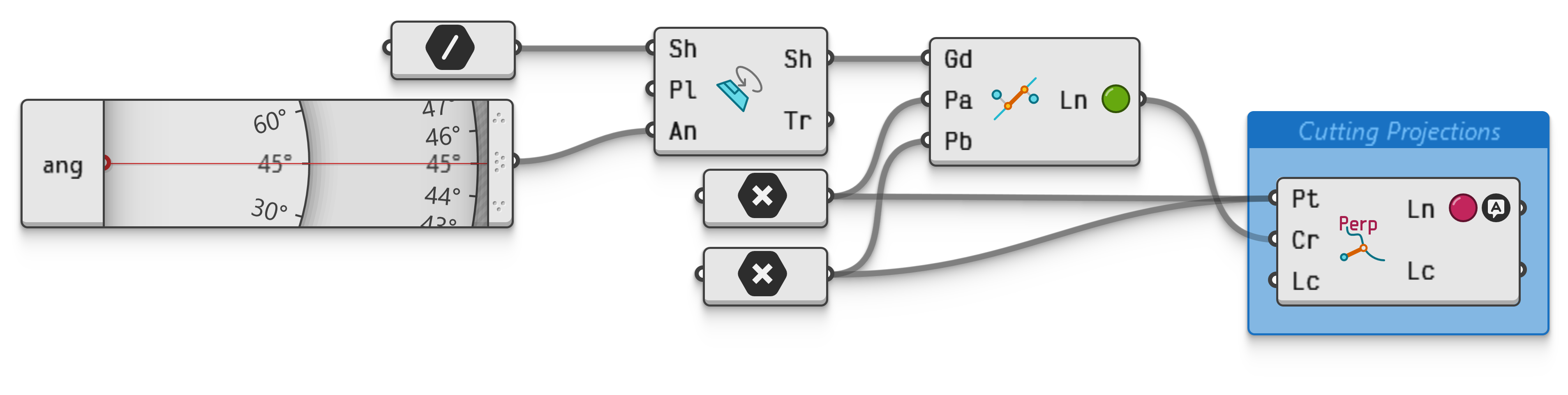

Example file LineCuePoints.ghz.Interactive in Grasshopper 2
Create the finite portion of an infinite line which exists between the projections of two points onto the line. This file also draws the implied cutting lines in pink.
