Surface Isocurves
00000000-2787-4703-8b0d-9b6d5123a7c6

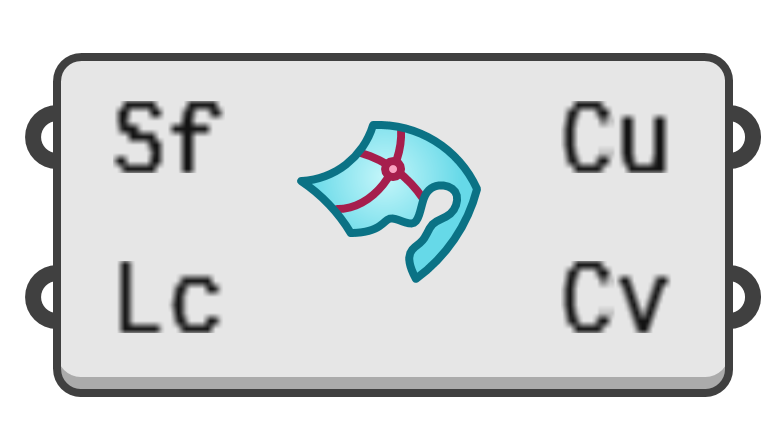

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the surface isocurves coincident with a given locus. The isocurves will be limited to the interior of trimmed surfaces.

Input parameters:

  1. Sf → Surface for isocurve extraction in the U and V directions.
  2. Lc → Surface locus.

Output parameters:

  1. Cu → Curve through the locus in the surface U direction.
  2. Cv → Curve through the locus in the surface V direction.
