Offset Mesh
00000000-217b-4cf5-a654-a682eac122eb

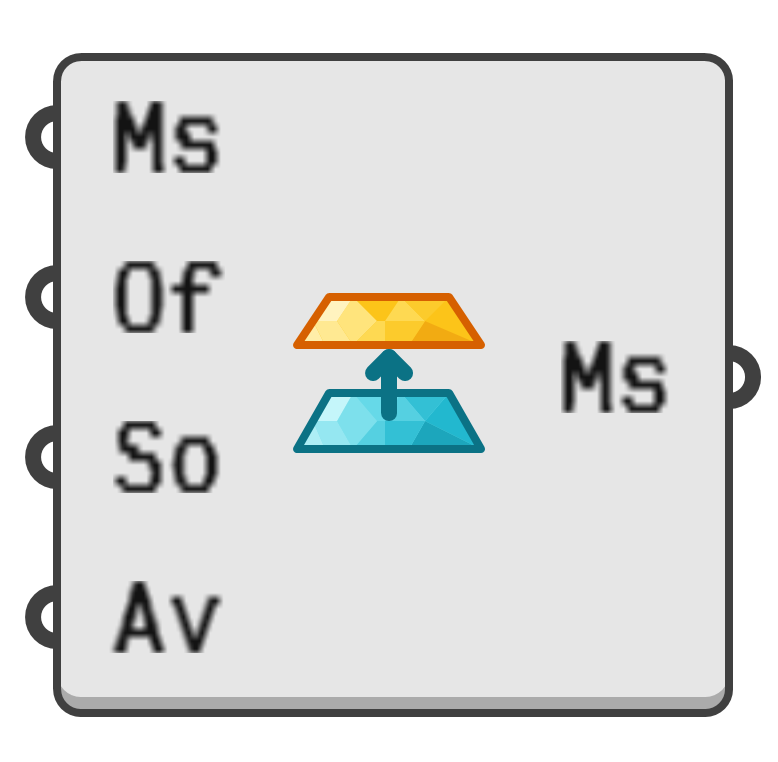

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Offset the vertices of a mesh along their normal directions.

Input parameters:

  1. Ms → Mesh to offset.
  2. Of → Offset distance. Positive values indicate the offset is in the direction of the normal.
  3. So → Specifies whether the offset mesh and the original mesh are stitched together along their naked edges.
    •  True → Solid
    • False → Shell
  4. Av → Specifies whether to average the normals along creases prior to offsetting.
    •  True → Average
    • False → Retain

Output parameters:

  1. Ms → Mesh with offset vertices.
