Inflate Surface
00000000-211a-4596-b390-8fe72ff92e1d

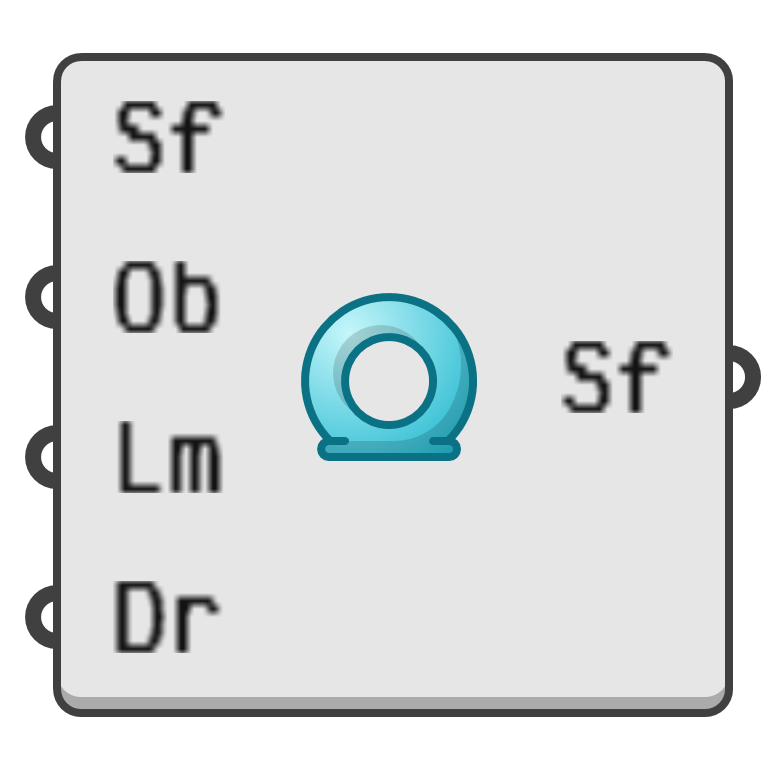

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Inflate a surface by moving its control points up to a set of obstacles.

Input parameters:

  1. Sf → Surface to inflate.
  2. Ob → Obstacle shapes.
  3. Lm → Optional inflation limit. If omitted, points that do not hit obstacles will not move at all.
  4. Dr → Optional inflation direction. If omitted, the surface normal will be used.

Output parameters:

  1. Sf → Inflated surface.
