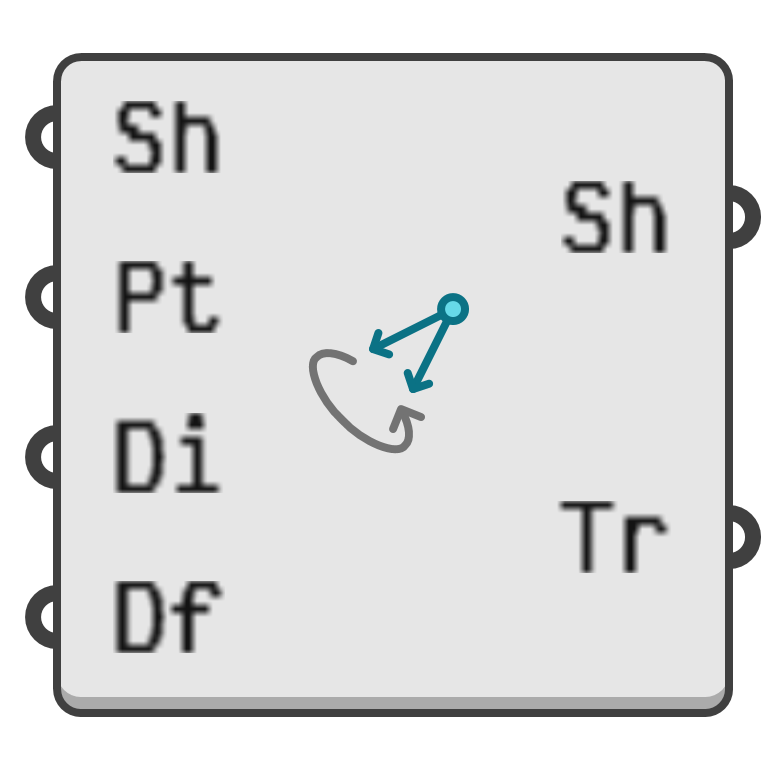

Rotate Direction
00000000-1e0e-49d9-a053-98e4cc8dcd92
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a rotation from one direction to another. If an input shape is provided, it will be rotated accordingly.

Input parameters:

  1. Sh → Optional shape to rotate.
  2. Pt → Rotation origin point.
  3. Di → Initial direction at origin point.
  4. Df → Final direction at origin point.

Output parameters:

  1. Sh → Rotated shape.
  2. Tr → Rotation transformation.
