SubD Vertices
00000000-1d7f-437f-9929-140c5c161de3

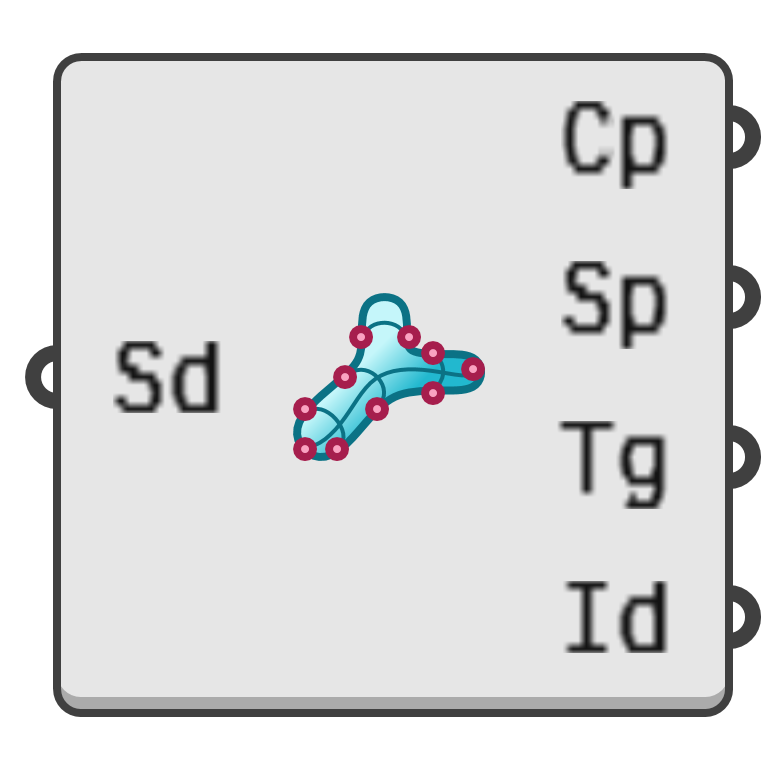

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract all vertex data from a SubD.

Input parameters:

  1. Sd → Subdivision surface to analyse.

Output parameters:

  1. Cp → Points in the control-polygon corresponding to all vertices.
  2. Sp → Points on the subdivision limit surface corresponding to all vertices.
  3. Tg → Tag descriptors of all vertices.
  4. Id → Identifiers of all vertices.
