Unify Mesh Normals
00000000-1aa2-459a-8f00-991d220f6b2a

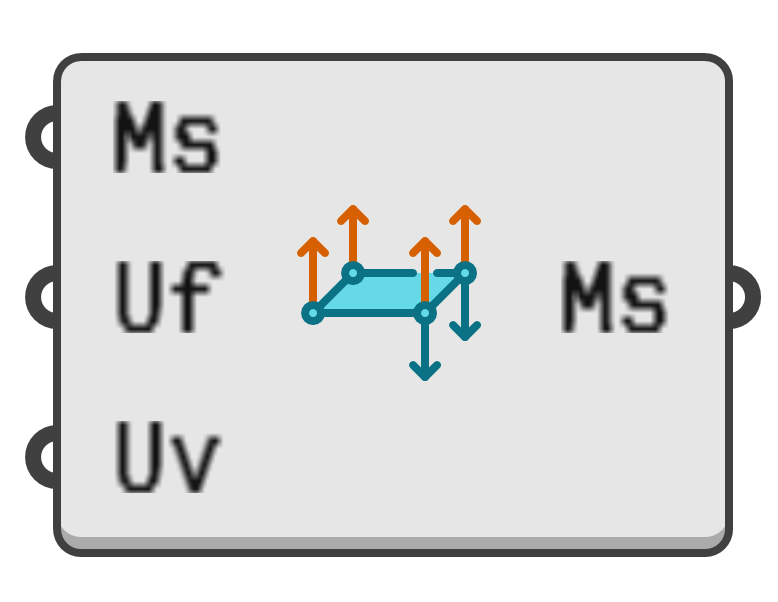

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Fix mesh normal inconsistencies caused by facet winding orientations.

Input parameters:

  1. Ms → Mesh with normals to unify.
  2. Uf → Unify facet normals and winding orientations based on the surrounding facets.
    •  True → Unify
    • False → Leave
  3. Uv → Unify vertex normals based on the surrounding facet normals.
    •  True → Unify
    • False → Leave

Output parameters:

  1. Ms → Mesh with unified normals.
