Extrude Slab
00000000-190f-41ca-bff3-765f58898a36

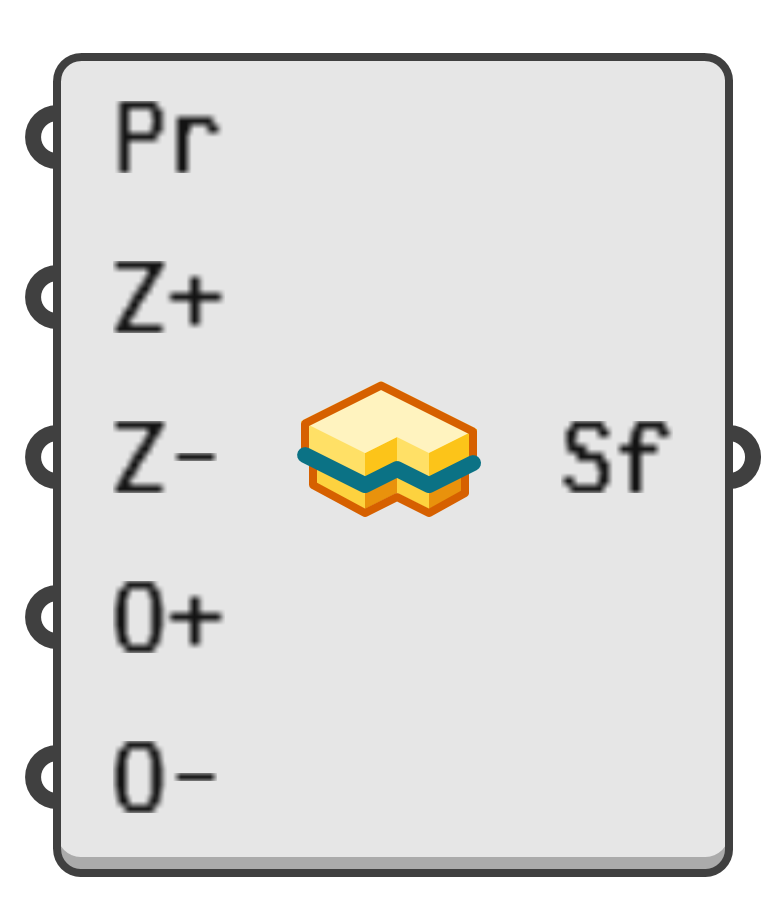

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extrude a profile curve or single-face surface as a slab.

Input parameters:

  1. Pr → Slab profile curve or face. The profile must be planar and closed.
  2. Z+ → Extrusion height above the profile.
  3. Z- → Extrusion height below the profile.
  4. O+ → Slab offset distance above the profile.
  5. O- → Slab offset distance below the profile.

Output parameters:

  1. Sf → Slab-like extrusion surface.
