Flow Along Surface
00000000-0add-43b5-a2be-dcbd91864f40

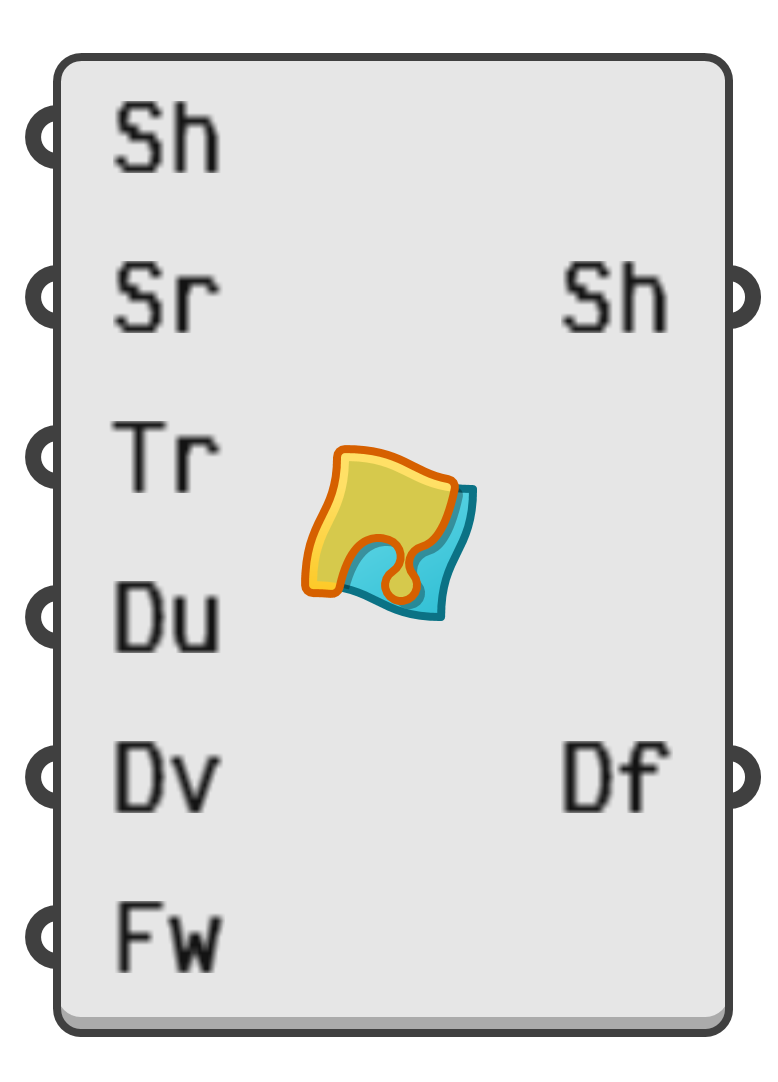

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a flow deformation which maps onto a surface UVW space. If an input shape is provided, it will be deformed accordingly.

Input parameters:

  1. Sh → Optional shape to deform.
  2. Sr → Source space in the form of a rectilinear box.
  3. Tr → Target surface for flow deformation.
  4. Du → Optional U domain for target space. If omitted, the entire domain will be used.
  5. Dv → Optional V domain for target space. If omitted, the entire domain will be used.
  6. Fw → Scaling factor in the surface normal direction.

Output parameters:

  1. Sh → Shape with applied deformation.
  2. Df → Flow deformation.
