Polyline From Angles

00000000-0ab6-4951-a3da-65413dcef17d

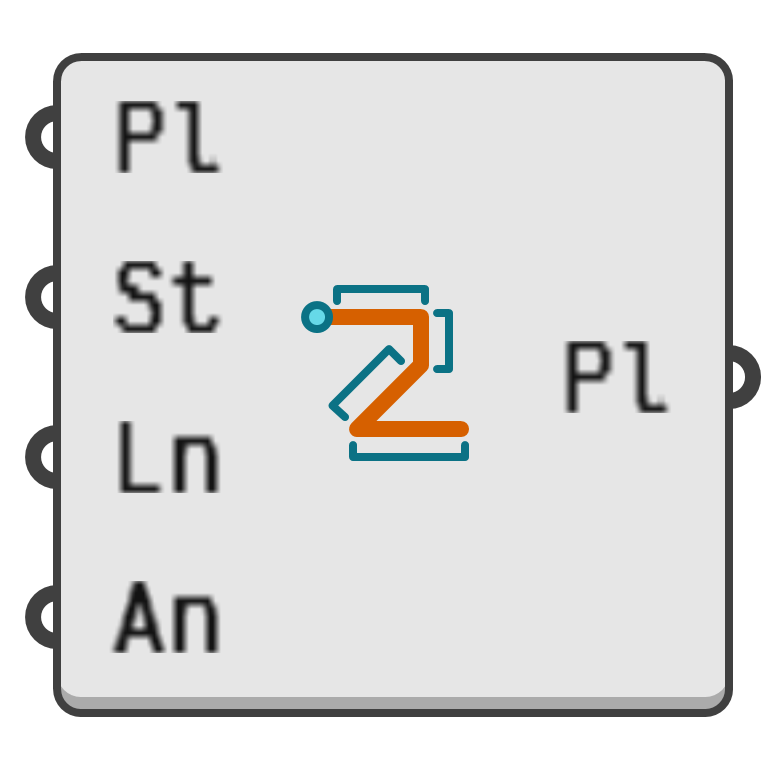

object preview

This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a polyline out of segment lengths and angles.

Input parameters:

Pl → Polyline base plane.
St → Start point of polyline.
Ln → Polyline segment lengths.
An → Polyline segment angles. Angles are measured between consecutive segments.

Output parameters:

Pl → Polyline created out of angled segments.
