Splop Deform
00000000-0a5a-4a5b-85fc-89b7acad9c3a

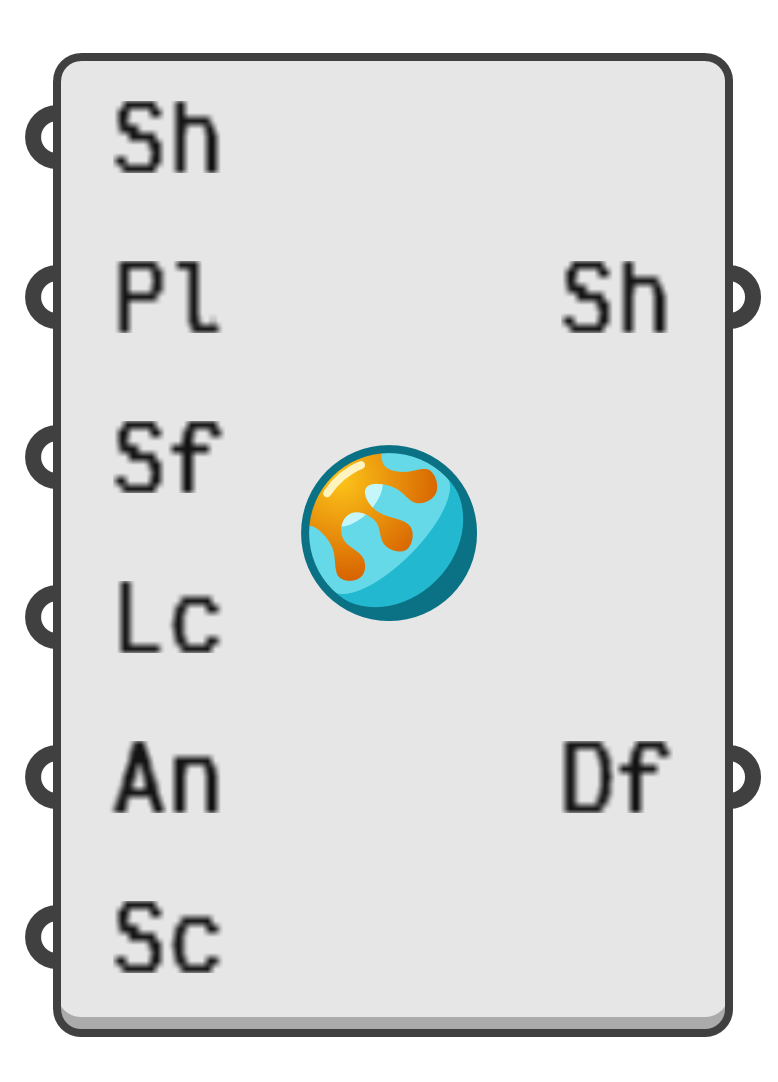

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a splop deformation which maps from flat space into surface UVW space. If an input shape is provided, it will be deformed accordingly.

Input parameters:

  1. Sh → Optional shape to deform.
  2. Pl → Reference plane for splop deformation.
  3. Sf → Target surface.
  4. Lc → Surface locus where the deformation origin is anchored.
  5. An → Rotation angle around surface locus.
  6. Sc → Scale factor.

Output parameters:

  1. Sh → Shape with applied deformation.
  2. Df → Splop deformation.
