ComponentCurve
Line Through Sphere
00000000-09a7-4081-9574-d7698bf98f27

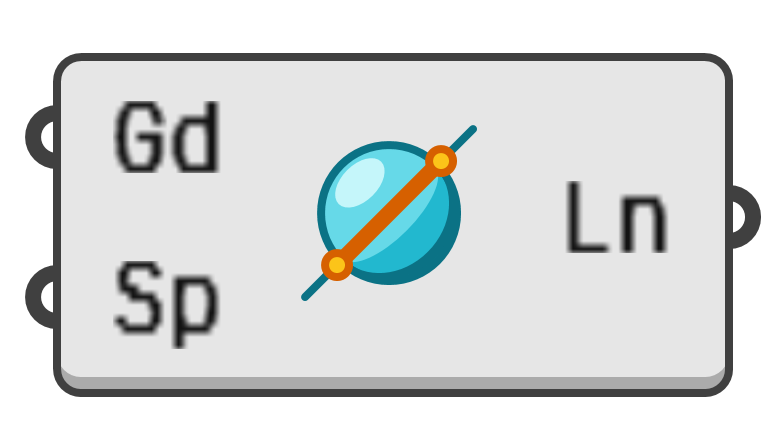

object preview

Create the finite portion of an infinite line segment which exists on the interior of a sphere.

If the input line is tangent with the sphere, a zero length line segment will be created which is considered invalid in many contexts, as it lacks a tangent direction.

If the line completely misses the sphere, a null will be outputted instead of a line.

1
2

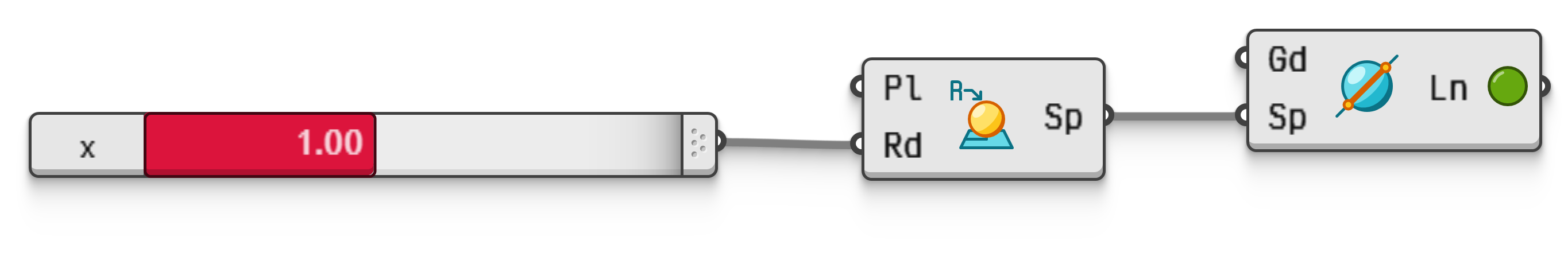

Example file LineThroughSphere.ghz.Interactive in Grasshopper 2
Create a line through a sphere with variable radius.
