Parallel View Complex
00000000-05b8-4aca-81ec-b68b38566890

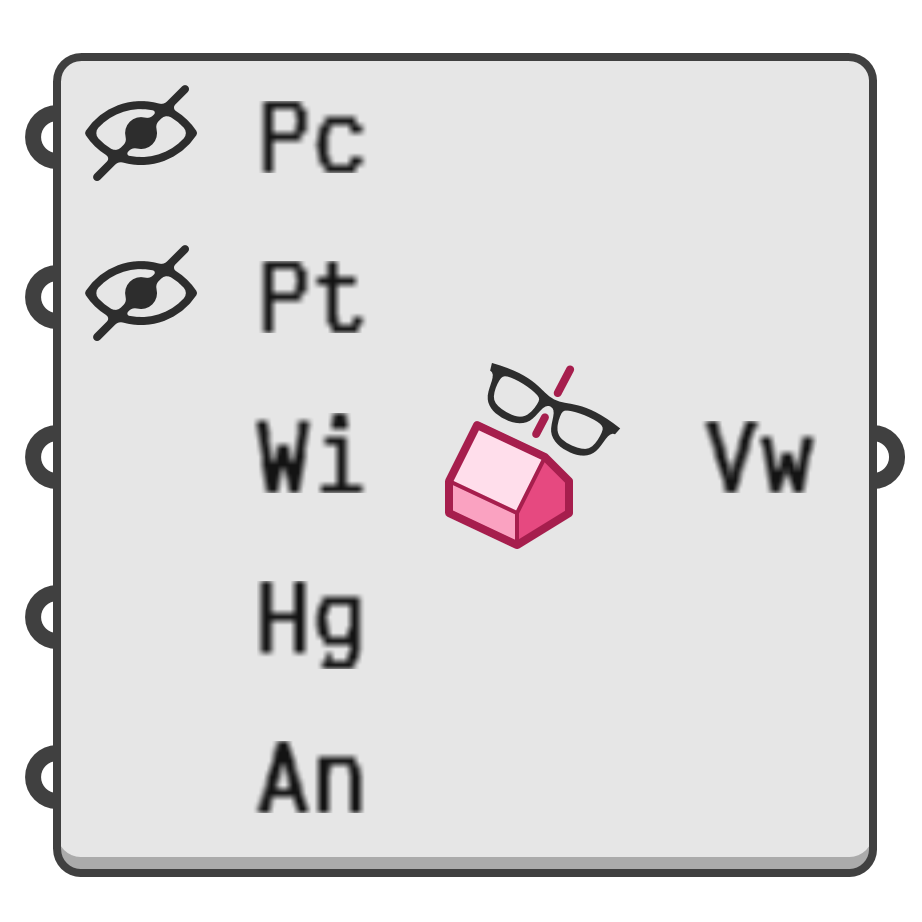

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a parallel view projection from advanced properties.

Input parameters:

  1. Pc → Location of view point.
  2. Pt → Location of target point.
  3. Wi → Horizontal range of the parallel frustum box in model units.
  4. Hg → Vertical range of the parallel frustum box in model units.
  5. An → Camera tilt angle around the view-target axis.

Output parameters:

  1. Vw → Parallel view with complex properties.
