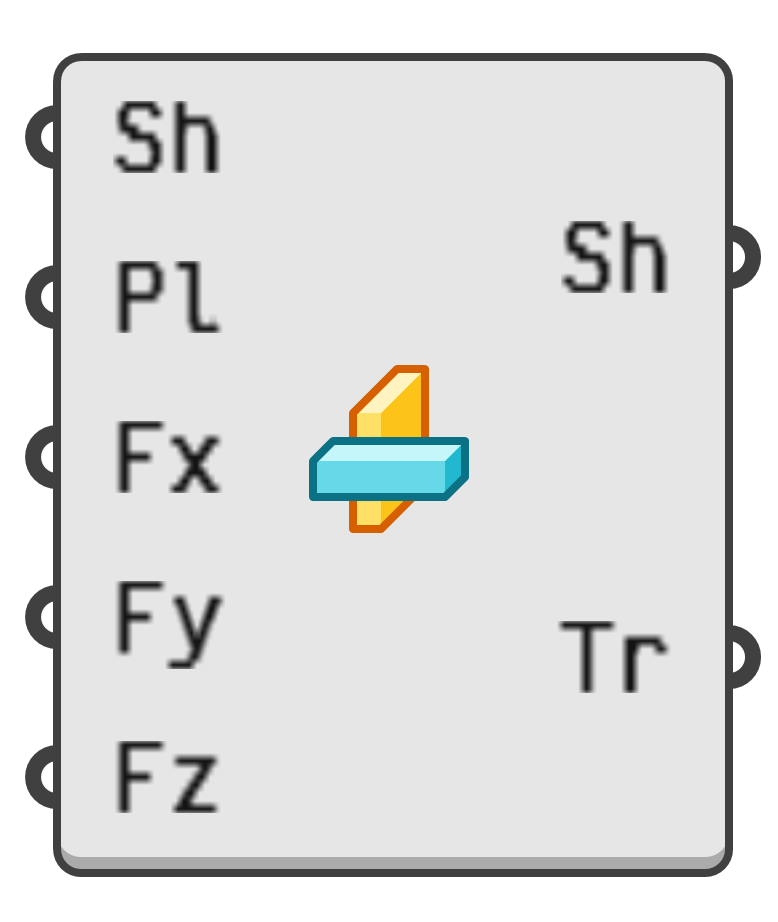

Scale Non-uniform

00000000-0284-499c-a3a4-c092f603a5e1

This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a dilation, or scaling transformation, using different factors in the X, Y, and Z directions. If an input shape is provided, it will be scaled accordingly.

Input parameters:

Sh → Optional shape to scale.
Pl → Plane specifying the origin and axis directions of the scaling transformation.
Fx → Scaling factor in plane X direction.
Fy → Scaling factor in plane Y direction.
Fz → Scaling factor in plane Z direction.

Output parameters:

Sh → Scaled shape.
Tr → Scaling transformation.
