...you are invited to try Rhino 9 while it is a work-in-progress (WIP). Help make Rhino 9 better. |
|
|
|
|
|
More new drafting tools you will find useful. |
|
|
|

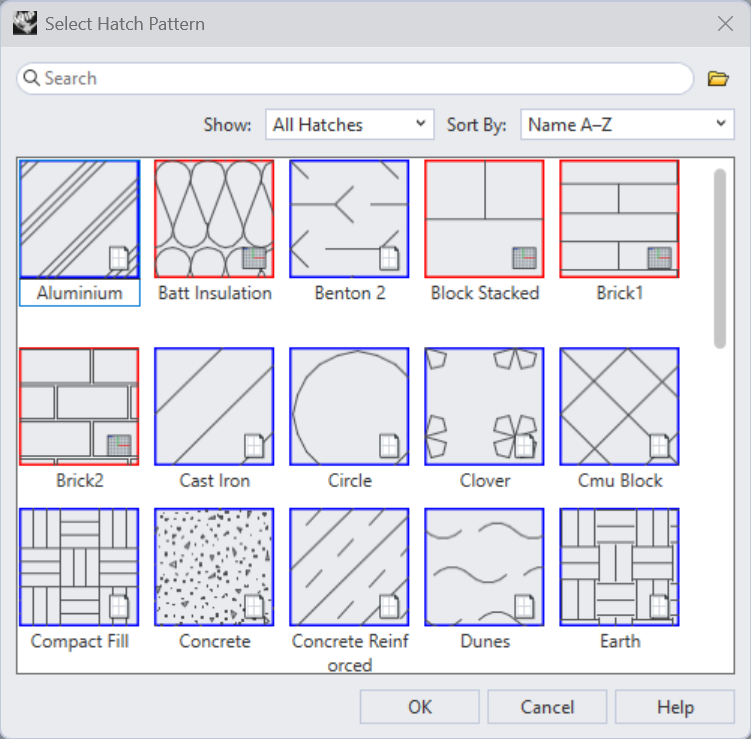

More Hatch Patterns Faster For Rhino 9, we’ve redesigned Rhino’s hatch pattern interface with a fast, visual grid for easier management of large collections of hatch patterns. |
|
|
|

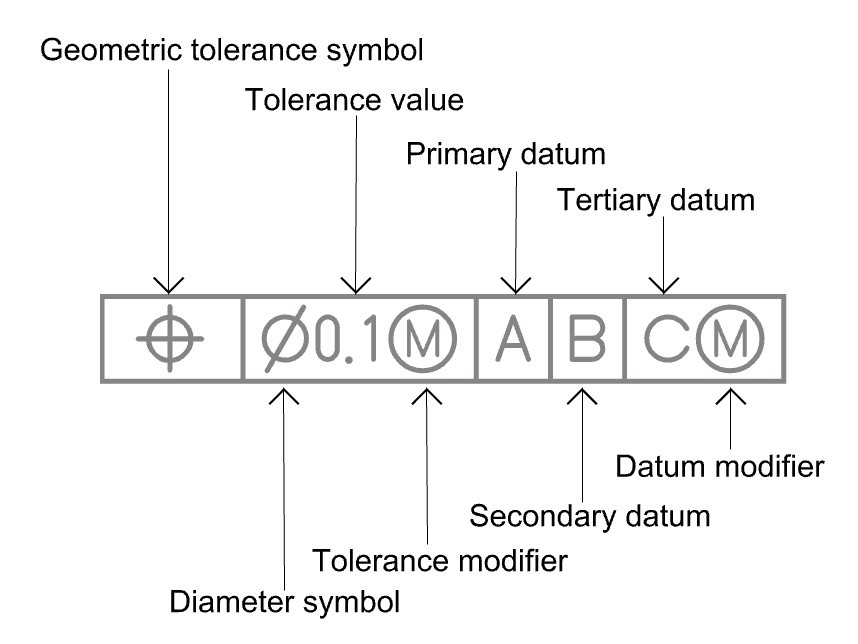

Geometric Tolerancing - New! Geometric Dimensioning and Tolerancing (GD&T) is a standardized system used in engineering drawings to communicate how much variation in size, shape, and location is allowed for a part’s geometry.
By using specific symbols, GD&T tells manufacturers the exact tolerances (acceptable limits) so the part will still work properly even if it isn’t made perfectly to the nominal dimensions. |
|
|
|
