Curve From Angle
00000000-41a7-40cf-abec-e49cbd3aa4f4

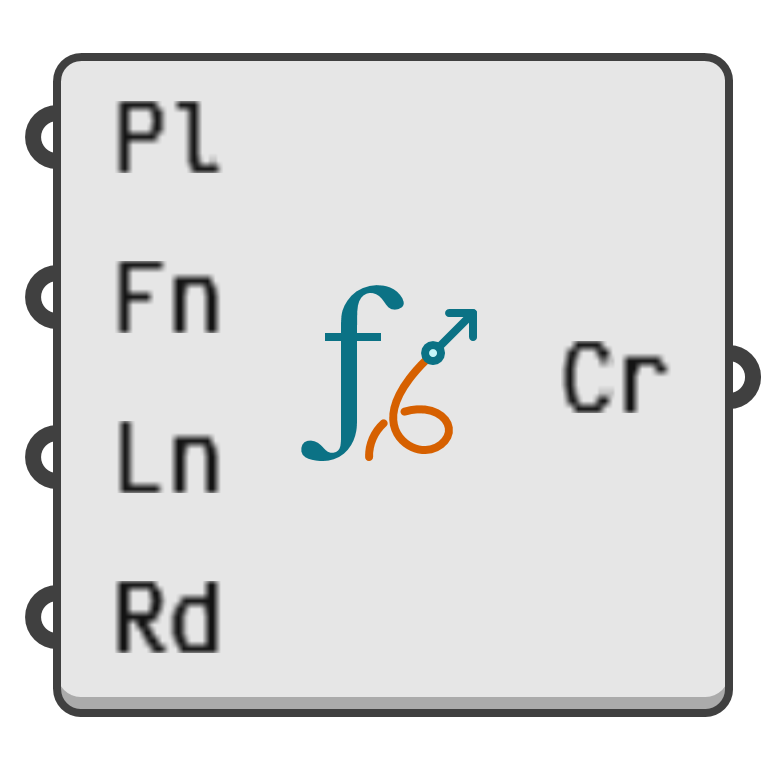

object preview

Create a planar curve whose tangent angle is determined by a given function at each point along its length. The angle at length l as measured along the curve, equals the value of the function f(l). The function values can be interpreted as either degrees or radians.

The curve starts at the origin of the given plane, with the plane x-axis pointing in the zero angle direction. That is, if f(l) equals zero at l=0, the curve will start parallel to the x-axis.

Note that the resulting curve is a sampled approximation of the mathematically exact curve.

1
1
1
2

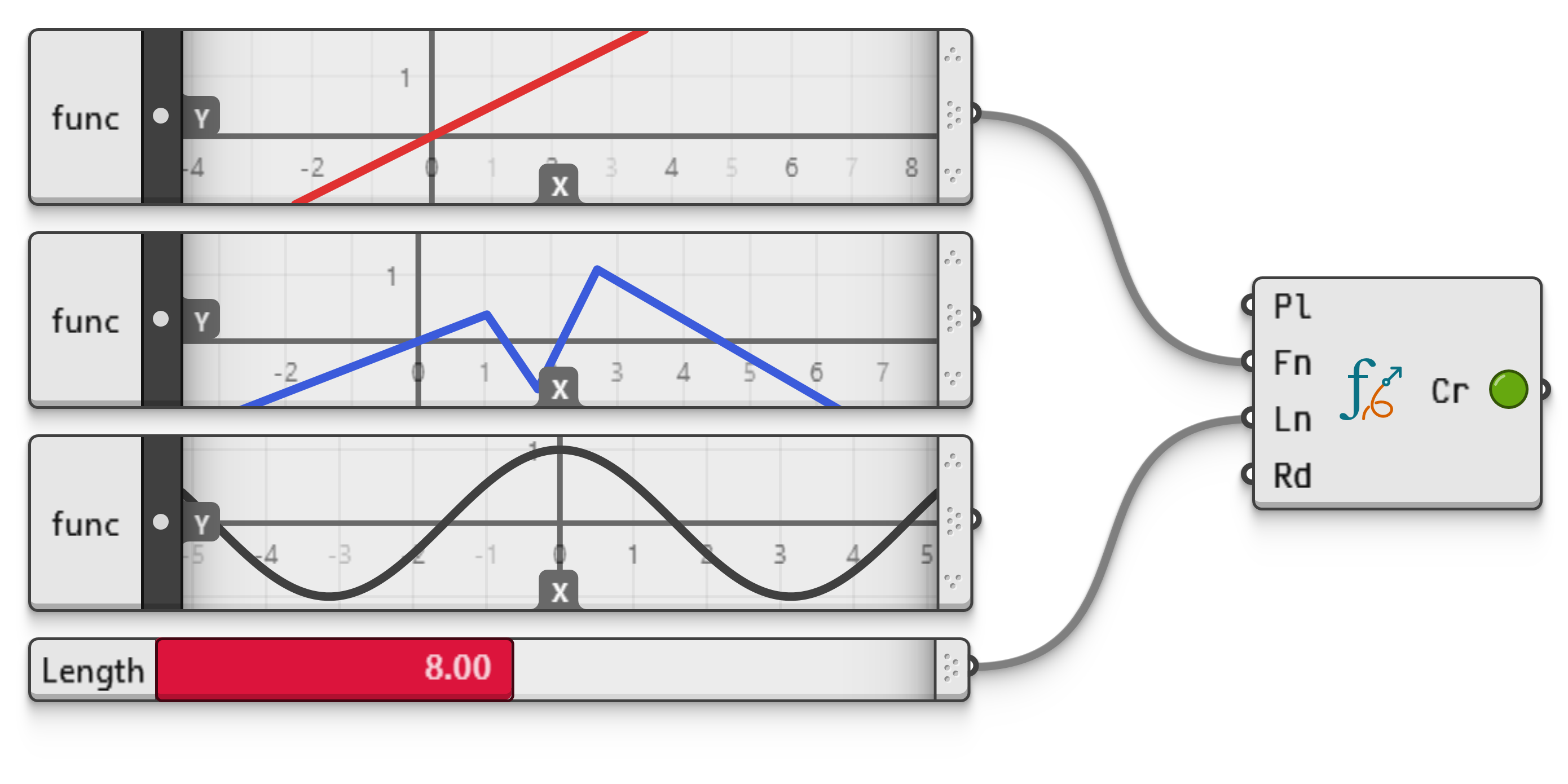

Example file CurveFromAngle.ghz.Interactive in Grasshopper 2
Create an angle controlled curve from a set of available functions.
